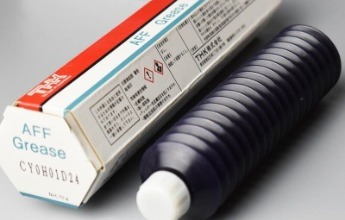

THK AFF Grease
Product Number：THK AFF Grease
[Operating Temperature Range]
-40°C~120°C
[Color]
Reddish Brown-70g, 400g
-40°C~120°C
[Color]
Reddish Brown-70g, 400g
[Operating Temperature Range]
-40°C~120°C
►Low dust generation
►Machine stability
►Micro-vibration
►For clean environments
►Lithium-based
THK-AFF Grease THK ORIGINAL GREASE
Base oil: High-grade synthetic oil
Consistency enhancer: Lithium-based
AFF grease uses high-grade synthetic oil as its base and a lithium-based grease as its consistency enhancer, while also featuring special additives. This gives it excellent anti-fretting and low dustgenerating performance. It also features a level of stable rolling resistance not found in other conventional vacuum and low dust-generating greases.
[Features]
1. Stable rolling resistance
Since the viscous resistance is low, the rolling resistance fluctuation is also low. Thus, superb conformity is achieved at low speeds.2. Low dust generation
It generates very little dust, making it ideal for use under micro-stroke conditions.
3. Fretting resistance
Since AFF grease is more resistant to wear from micro-vibrations than other low dust-generating greases, it allows the greasing interval to be extended.
[Representative Physical Properties]
| Item | Representative value | Test method | |
|---|---|---|---|
| Consistency enhancer | Lithium-based | ||
| Base oil | High-grade synthetic oil | ||
| Base oil kinematic viscosity: mm2/s (40°C) | 100 | JIS K 2220 23 | |
| Worked penetration (25°C, 60 W) | 315 | JIS K 2220 7 | |
| Mixing stability (100,000 W) | 345 | JIS K 2220 15 | |
| Dropping point: °C | 220 | JIS K 2220 8 | |
| Evaporation amount: mass% (99°C, 22 h) | 0.7 | JIS K 2220 10 | |
| Oil separation rate: mass% (100°C, 24 h) | 2.6 | JIS K 2220 11 | |
| Copper plate corrosion (B method, 100°C, 24 h) | Accepted | JIS K 2220 9 | |
Low-temperature torque: mN-m (‒20°C) |
Starting | 220 | JIS K 2220 18 |
| Rotational | 60 | ||
| 4-ball testing (welding load): N | 1236 | ASTM D2596 | |
| Service temperature range: °C | -40~120 | ||
| Color | Reddish brown | ||
